Mixers

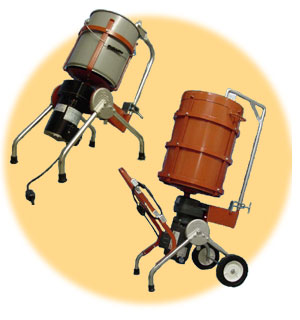

SERIES M - 61 MIXER and M - 61 MOBILE MIXER
For Small Batch Mixing of Epoxies, Paints, Chemicals, Plastics, Cements, Inks and Adhesives
Available in 3 sizes - 5 gallon, 10 gallon, and 15 gallon;
2 speeds - 30 RPM and 60 RPM.
All sizes are available with 8 inch semi-pneumatic wheels for mobility.
Rotating Drum Container is convenient, removable, easy to clean.
Stationary Mixing Paddle provides both radical and axial action, scrapes sides and bottom of drum for complete mixing, removes for easy cleaning.
Constant speed. positive drive gear head motor is standard. Equipped with ON-OFF switch, fuse protection, 8-foot 3-wire cord with 3 prong grounded plug.
The M-61 comes with 4 different size motors: 1/4 HP, 1/2 HP, 1 HP, and 1/2 XP (Explosion Proof)
A large choice of paddle designs are available.
Available in 3 sizes - 5 gallon, 10 gallon, and 15 gallon;
2 speeds - 30 RPM and 60 RPM.
All sizes are available with 8 inch semi-pneumatic wheels for mobility.
Rotating Drum Container is convenient, removable, easy to clean.
Stationary Mixing Paddle provides both radical and axial action, scrapes sides and bottom of drum for complete mixing, removes for easy cleaning.
Constant speed. positive drive gear head motor is standard. Equipped with ON-OFF switch, fuse protection, 8-foot 3-wire cord with 3 prong grounded plug.
The M-61 comes with 4 different size motors: 1/4 HP, 1/2 HP, 1 HP, and 1/2 XP (Explosion Proof)
A large choice of paddle designs are available.
KOL M-58 Mixer with Fixed Mixing Angle
Normal Motor Current is 5.3 Amperes. Plugs in on 110 Volt - 60 Cycle Current. Plug and Cord are Attached to the Motor
Oilite Bronze Bearings used Throughout. Dust and Dirt Cannot Get in - Motor Bearings Protected By Seal.
Name Brand Quality Motor - ( Geared Approx 30:1)
Rugged Enough for any Mixing Job.
Capacity - Same as M 60 Mixer
Motor Sizes Available 1/4, 1/3, and 1/2 HP
Oilite Bronze Bearings used Throughout. Dust and Dirt Cannot Get in - Motor Bearings Protected By Seal.
Name Brand Quality Motor - ( Geared Approx 30:1)
Rugged Enough for any Mixing Job.
Capacity - Same as M 60 Mixer
Motor Sizes Available 1/4, 1/3, and 1/2 HP
KOL M-60 Mixer with Adjustable Mixing Angle
Maximum Fluid Capacity - 5 Gallons
Maximum Cement Mix Capacity - 70 lbs
Recommended Cement Mix - 50 lbs
Choice of 4 Mixing Angles
Max Pail Speed - 60 RPM
Dimensions 12" x 18" x 24" High
Shipping Weight with Motor 47 lbs
All Steel Construction - Smooth Enamel Finish
Easy Assembly of Parts with Crescent Wrench and Screwdriver
All Bearings of Oil Impregnated Bronze with Seals to Keep out Dust and Dirt
Built for Continuous Duty Performance
Motor Sizes Available 1/4, 1/3 and 1/2 HP
Maximum Cement Mix Capacity - 70 lbs
Recommended Cement Mix - 50 lbs
Choice of 4 Mixing Angles
Max Pail Speed - 60 RPM
Dimensions 12" x 18" x 24" High
Shipping Weight with Motor 47 lbs
All Steel Construction - Smooth Enamel Finish
Easy Assembly of Parts with Crescent Wrench and Screwdriver
All Bearings of Oil Impregnated Bronze with Seals to Keep out Dust and Dirt
Built for Continuous Duty Performance
Motor Sizes Available 1/4, 1/3 and 1/2 HP
